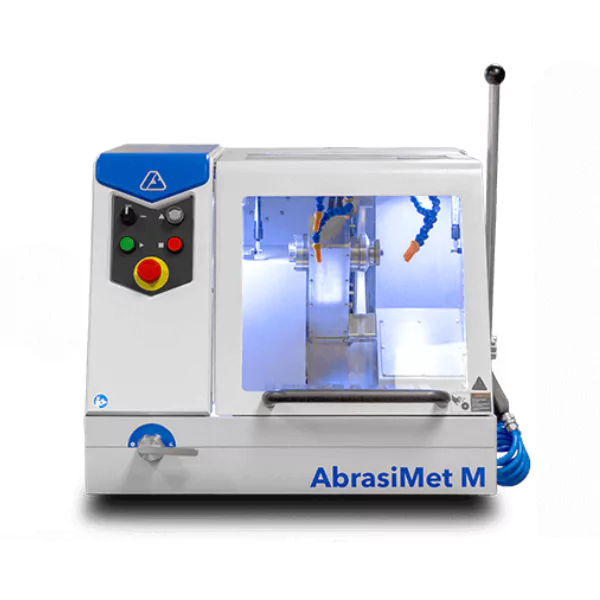

AbrasiMet M Manual Abrasive Cutter – Heavy-Duty 12" Benchtop Saw
The Buehler AbrasiMet M is a robust, benchtop manual abrasive cutter designed to deliver consistent, high-quality sectioning results in demanding metallography laboratories. Engineered for versatility and ease of use, this heavy-duty machine combines a powerful 5.5 HP (4 kW) motor with a 12-inch (305 mm) blade capacity, allowing it to effortlessly slice through tough materials ranging from hardened steels and superalloys to non-ferrous metals. Its advanced design maximizes cutting torque, ensuring rapid processing times even for solid samples up to 4.3 inches (110 mm) in diameter.
Built with the operator in mind, the AbrasiMet M features an ergonomic, adjustable cutting handle and a spacious chamber with a large viewing window, providing excellent visibility and control during the cutting process. Unique efficiency features such as the tool-less blade change system allow users to swap abrasive wheels in seconds without the need for wrenches, significantly reducing downtime. With its durable casting, integrated cleaning nozzle, and optional dual-blade capability for parallel sectioning, the AbrasiMet M is the ideal solution for labs requiring a reliable, high-capacity manual saw that withstands daily industrial use.
Technical Specification of Buehler AbrasiMet M
Machine Performance
| Motor Power | 5.5 HP [4 kW] |
| Operation Mode | Manual Z-Axis Chop |
| Blade Capacity | 10 in [254 mm] or 12 in [305 mm] |
| Arbor Size | 1.25 in [32 mm] |
| Blade Speed | 2600 rpm (12") / 3000 rpm (10") |
| Max Cut Capacity | 4.3 in [110 mm] (Round) |
| Blade Change | Tool-less (Hand Tighten Nut) |
| Lighting | 2 High-Intensity LED Strips |
| Sound Rating | 67 dBA (Idle) / 76 dBA (Cutting) |
Dimensions & Utilities
| Machine Dims (WxDxH) |
31.1 x 27.3 x 25.7 in (Hood Closed) [791 x 694 x 653 mm] |
| Machine Weight | 309 lbs [140 kg] |
| Chamber Window | Large Viewing Area (Polycarbonate) |
| T-Slot Table |
Left: 9.8 x 7.1 in [250 x 180 mm] Right: 9.8 x 4.5 in [250 x 114 mm] |
| Handle Type | Ergonomic Adjustable Arm |
| Coolant Tank | Recirculation Tank Required |
| Voltage Options |
200-240VAC, 3-Phase 380-460VAC, 3-Phase |
| Max Current |
14.8A @ 230V 7.6A @ 460V |
| Safety Features | Interlock Hood, E-Stop, CE Marked |
Key Features & Benefits of Buehler AbrasiMet M
Key Features
- Tool-Less Blade Change: Patented locking nut allows you to swap abrasive wheels by hand in seconds.
- Powerful 5.5 HP Motor: High-torque 3-phase motor designed to cut hardened steel without stalling.
- Dual Blade Compatible: Optional accessory allows mounting two blades for parallel sectioning.
- Adjustable Cutting Arm: Ergonomic handle position can be customized for operator comfort.
- Large Visualization: Massive polycarbonate window and bright LED lighting for full process visibility.
- Internal Washdown: Built-in cleaning hose with spray nozzle for easy chamber maintenance.
User Benefits
- Reduced Setup Time: Change blades quickly without searching for wrenches or tools.
- Maximized Throughput: Cut multiple slices at once using the Dual Blade feature.
- Operator Comfort: The adjustable handle reduces fatigue during repetitive manual chopping.
- Versatile Capacity: 4.3" [110mm] cutting capacity handles a wide range of sample sizes.
- Clean Workspace: Integrated washdown system makes it easy to flush away debris after cutting.
- Reliable Safety: Heavy-duty interlock hood prevents access to the chamber during operation.
Ordering Information
| AbrasiMet M Manual Cutter | |
|---|---|
| Voltage Configuration | |
| Part Number | Voltage |
| 10-10107-200 | 200-240VAC, 50-60Hz (3-Phase) |
| 10-10107-400 | 380-460VAC, 50-60Hz (3-Phase) |
| 10-10107-200 (CSA) | CSA 200-240VAC, 50-60Hz (3-Phase) |
Consumables and Accessories
Vising for Abrasive Saws and Cutters
Abrasive Blades for Abrasive Saws
Coolants for Sectioning Machines
For AbrasiMatic 300
When equipped with a 12-inch (305mm) blade, the AbrasiMet M can cut solid samples up to 4.3 inches (110mm) in diameter. With a 10-inch blade, the capacity is 3.3 inches (84mm).
Yes, the heavy-duty 5.5 HP motor requires a 3-phase electrical connection. You can order the machine configured for either 200-240VAC or 380-460VAC (50/60Hz).
The AbrasiMet M features a tool-less blade change system. A specialized locking nut allows operators to loosen and tighten the blade by hand, eliminating the need for wrenches and significantly reducing changeover time.
Yes, the machine supports an optional Dual Blade Accessory. This allows you to mount two blades in parallel to create a specific sample thickness in a single cut, doubling throughput for certain applications.

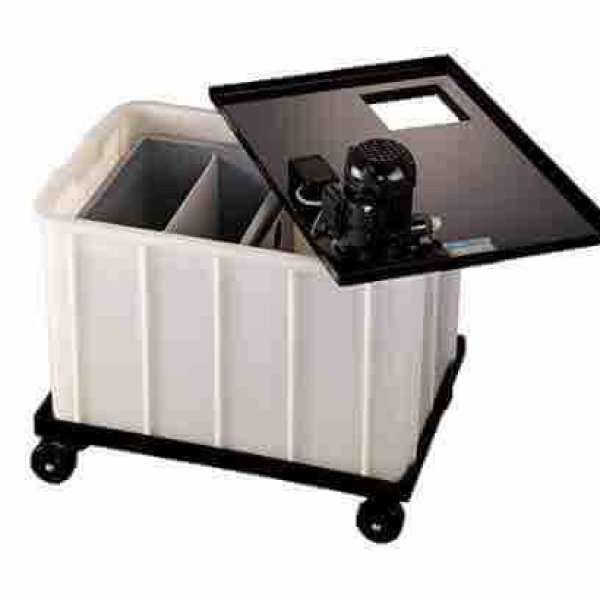

The machine requires an external recirculation tank for coolant, which is sold separately to allow for different capacity options (typically 35 gallons / 130L). The cutter unit itself includes the washdown hose and cleaning nozzle.
